One Supplier. One Quality System.
Donlouco is a Cork-based precision manufacturer, established in 2006, that owns and operates its own CNC machining facility in Jiashan, China. We manufacture CNC-machined and forged steel hydraulic cylinder components to customer drawings for cylinder manufacturers and OEMs across Ireland, the UK & Europe, managed from our head office in Cork.
All components are made to exact customer specifications, ISO 9001 & EN 1090 certified, and delivered plug-and-play ready to go straight onto your cylinder line.
Who we're best for: hydraulic cylinder manufacturers and OEMs sourcing end caps, gland nuts, pistons, rod eyes, clevises, trunnions and ported valve blocks in production volumes, made to their own drawings, with an Irish point of contact and European quality expectations.
Not a stockist: we don't sell seal kits or off-the-shelf repair parts from stock. For a one-off replacement part, a local hydraulic stockist is the faster option.
Hydraulic Cylinder Parts & Assemblies.

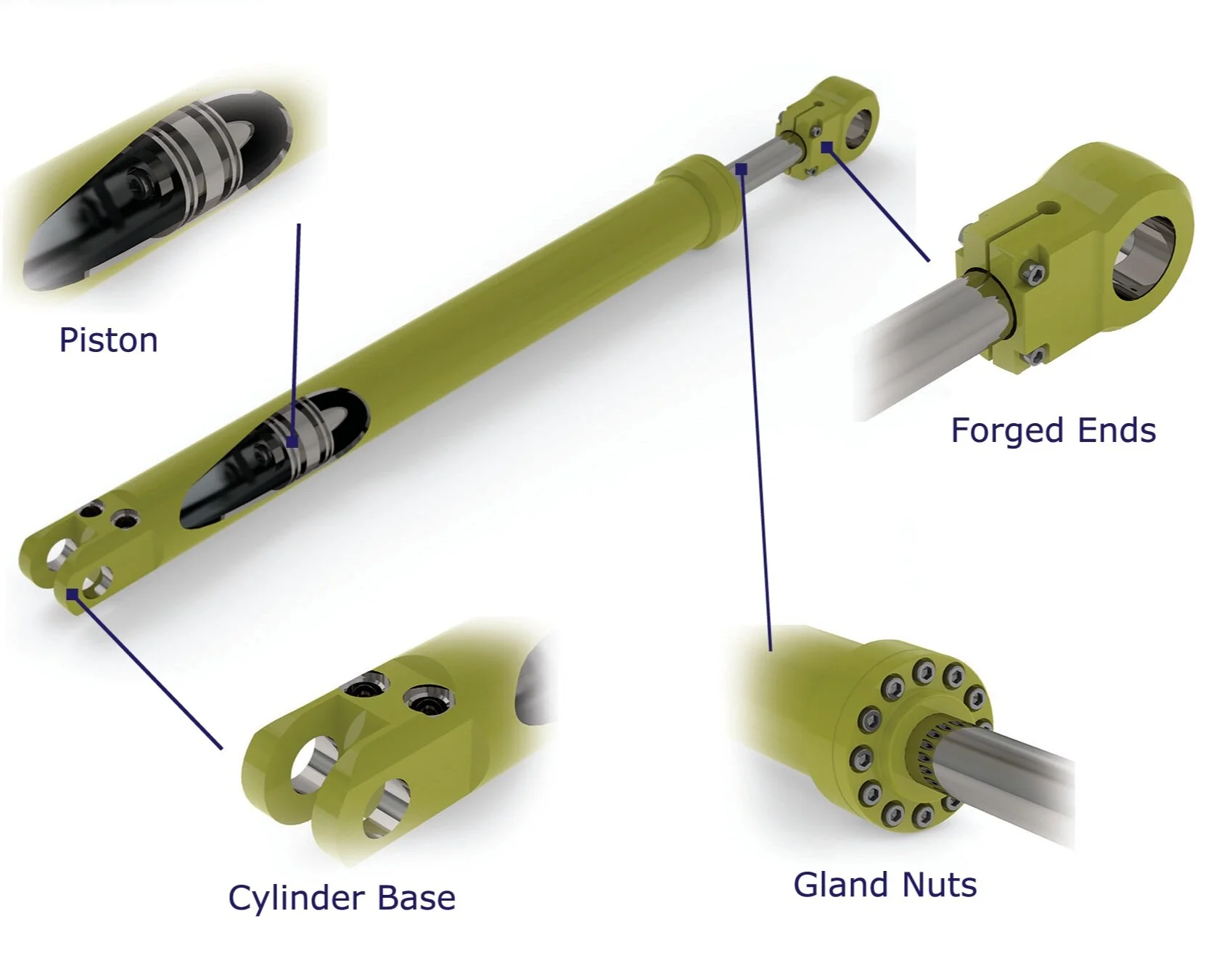

Every hydraulic cylinder component is made to exact customer specification, from simple threaded weld ports to complex forged rod ends and ported valve blocks.

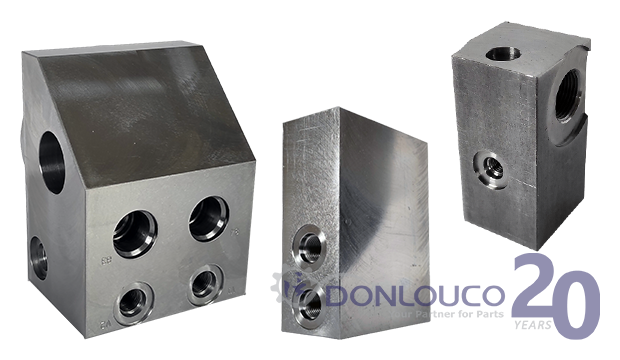

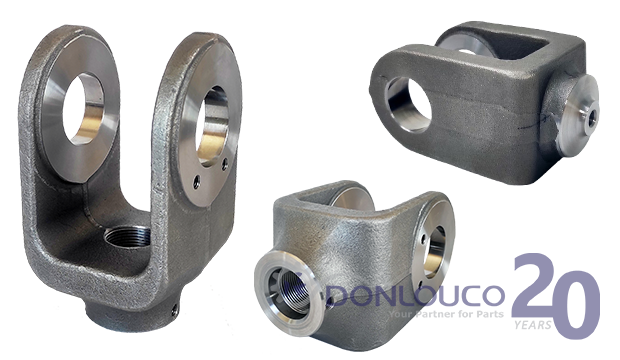

| Components | Head glands and gland nuts, cylinder end caps, forged bases, pistons, ported valve blocks, clevis mounts, trunnions, rod ends and rod eyes, ends with fitted spherical bearings |
|---|---|
| How they're made | CNC machined from solid, or forged to Donlouco tooling and secondary CNC machined in our own facility; heat treatment and shot blasting as required |
| Tolerance & finish | ±0.005mm general machining tolerance; surface finish Ra < 0.8μm |
| Forging | Up to 1,600 ton die forging; part weights from 0.5kg to 200kg+ |
| Port standards | SAE, T2A, JIC, Sun and Atlantic |
| Quality | ISO 9001 and EN 1090 approved; raw material certification, dimensional and surface finish reports with every shipment; tensile and impact testing available |
| Quote | Full commercial and technical quotation within one week of receiving drawings |
| Lead time | 10–12 weeks from enquiry to first delivery for new parts needing tooling and sample approval; repeat orders significantly faster |
| Markets | Ireland, the UK, Germany, France, the Netherlands, Belgium, Italy, Spain and Scandinavia, delivered door-to-door |
The Donlouco Advantage for
Hydraulic Manufacturers.
Our own CNC facility in Jiashan, Irish management and engineering in Cork, and a proven record with some of Europe's largest cylinder manufacturers, at a globally competitive price.
Our Own Factory in Jiashan
Your parts are CNC machined by Donlouco staff, on Donlouco machines, in a facility we own. The engineers who read your drawing in Cork work for the same company that runs the machine.
Full Traceability on Every Order
All shipments include raw material certification, dimensional reports and surface finish reports. Complete documentation for every part, every time.
Critical Quality & ISO Certified
ISO 9001 and EN 1090 approved for CE marking. All staff trained to European and US standards, with rigorous quality control and testing at every stage.
Plug & Play Delivery
Parts arrive ready to go straight onto your cylinder line, with no additional processing on receipt. Door-to-door delivery with customs managed by us.
Proven Cost & Quality Performance
A 100% quality pass rate on our largest hydraulics programme in 2025. China's cost base, with an Irish company accountable for every part and its documentation.
Flexible Manufacturing Capacity
Increase your capacity with minimal investment and no capital expenditure on your side, from small batches to high-volume annual programmes.
Hydraulic Cylinder Components for
UK Cylinder Manufacturers.
Donlouco manufactures hydraulic cylinder components to drawing for UK cylinder manufacturers and OEMs, in production volumes from our own factory, with delivery and customs handled by our team in Cork.
Door-to-door delivery to the UK
Parts are delivered to your UK facility with customs clearance and import paperwork managed by Donlouco end-to-end, so there are no unexpected charges or delays at the border.
Made to your drawing
Every part is manufactured to your own drawing and specification, including your dimensions, thread forms and port standards, rather than chosen from a fixed catalogue.
Production volumes, not one-offs
From small batches to high-volume annual programmes for end caps, gland nuts, pistons, rod eyes, clevises and trunnions. Just-in-time delivery is available for ongoing supply.
An Irish point of contact
You deal with Donlouco engineers in Cork, in your time zone and your language, accountable for every part and its documentation from drawing to delivery.
Precision CNC Machining for Hydraulic Components.
Hydraulic cylinder parts are CNC machined in our own facility in Jiashan, across a wide range of steels, including carbon steel, stainless steel and speciality alloys.
3, 4 and 5-axis machining centres let us manufacture large and small hydraulic components with complex geometries and fine surface finishes.
- 3, 4 & 5-Axis CNC Milling, including gantry machining.
- CNC turning on multi-tool combination machines.
- Machining accuracy: ±0.005mm general tolerance.
- Surface finish: Ra < 0.8μm.
- Machining of steel, cast steel or cast iron.
Valve port standards we machine to:
Forging for Hydraulic Cylinder Parts.
Cylinder bases, flanged parts and rod eyes are forged by approved partners to Donlouco tooling and specification, then CNC machined and inspected in our own facility. Forged parts are stronger and more durable than cast or machined-from-solid alternatives.
Optimised grain flow and material density give forged components the mechanical properties that demanding hydraulic applications need.
- Forging capacity up to 1,600 Ton (Die).
- Part weights from 0.5kg to 200kg+.
- Secondary CNC machining in our own facility, plus heat treatment as required.
- All steel grades to meet customer and European standards.
- Forging tools designed, managed & reverse-engineered by Donlouco.
- Full tensile, impact and dimensional testing available at approval stage.
Quality Control & Certifications.
Donlouco is ISO 9001 and EN 1090 approved for CE marking. Rigorous quality control and testing at every stage give you a sustainable supply of hydraulic parts that last.
- All parts checked at production stage in our own facility.
- All parts re-checked before shipping, with no exceptions.
- Full traceability: raw material certs, dimensional & surface finish reports.
- Tensile & impact testing available at approval stage and by sampling.
- All staff trained to European & US standards.
- Donlouco engineers in Cork and Jiashan: one company from drawing to dispatch.
Comprehensive testing: tensile testing a hydraulic rod end.
Common Questions About Our Hydraulic Parts.
Can't find the answer you need? Contact our team directly.
Donlouco supplies a full range of hydraulic cylinder components, including head glands, gland nuts, cylinder end caps, forged steel bases, pistons, ported valve blocks, clevis mounts, rod ends, forged steel eyes, and ends with fitted spherical bearings. Custom and non-standard parts are also available on request.
No. Donlouco manufactures hydraulic cylinder components to customer drawings for cylinder manufacturers and OEMs, in production volumes from our own factory. We don't sell seal kits or off-the-shelf repair parts from stock. For a one-off replacement part, a local hydraulic stockist is the faster option.
Yes. Donlouco owns and operates its CNC machining facility in Jiashan, China, through a wholly owned local company, managed from our head office in Cork. Hydraulic parts are CNC machined and inspected there by Donlouco staff. Forgings are produced by approved partners to our tooling and specification, then machined and inspected in our own facility.
Yes. Donlouco supplies UK cylinder manufacturers and OEMs with components made to their drawings, delivered door-to-door with customs clearance and import paperwork managed by Donlouco. You deal directly with our engineers in Cork from quotation through to delivery.
The most common are rod eyes and clevises, which pivot in one plane on a pin; spherical bearing ends, which also take angular misalignment; trunnion mounts, which pivot on the cylinder body; and flange mounts, which fix the cylinder for straight-line push or pull. Donlouco manufactures all of these to customer drawing.
Yes. Donlouco is ISO 9001 and EN 1090 approved, and all hydraulic cylinder parts are manufactured and inspected to these standards. Every shipment includes full traceability documentation: raw material certifications, dimensional reports and surface finish reports.
Forged parts such as rod ends, steel eyes and cylinder bases offer greater strength, optimised grain flow and better fatigue resistance than machined-from-solid or cast alternatives. CNC machined parts offer tighter tolerances and suit complex geometry such as ported valve blocks, gland nuts and pistons. Donlouco provides both, including secondary CNC machining of forged blanks in our own facility.
Yes. Donlouco specialises in custom hydraulic cylinder gland parts, including non-standard profiles and special thread forms. Send us your drawings or specifications and our engineering team will return a full commercial and technical quotation, typically within one week.
From initial enquiry to first delivery, the typical lead time is 10–12 weeks for new parts that need tooling and sample approval. Repeat orders for established parts are significantly faster. All scheduling is managed by Donlouco from Ireland, with door-to-door delivery to your facility.
Donlouco supplies hydraulic cylinder parts to manufacturers across Ireland, the United Kingdom, Germany, France, the Netherlands, Belgium, Italy, Spain and Scandinavia. All shipments are managed door-to-door from our head office in Cork, Ireland.
Send Us a Drawing.
We'll Return a Full Quote Within One Week.
Full commercial and technical quotation for your hydraulic cylinder parts. ISO 9001 and EN 1090 certified, machined in our own facility and delivered to your door.
Request a Quote Download Brochure
